Brick3 SDR Dual 16-bit is a continuation of the transceiver Brick2 SDR ie. Hermes-Lite EU1SW, but with another more powerful two! ADC with 16 bits. Has a main board, on which all elements are located, such as LNA, Step ATT 0-31 dB, separate BPF 6m with additional LNA, including power amplifier and 7 LPF.
The power amplifier is made according to a push-pull scheme on a pair of RD16HHF. The output power on 160-10m 10-15 watts, 6m 8-10 watts.
Can be used up to 4 rigs in one network.
The SW is provided by Sergey EU1SW and is still in the testing phase. If you would like to add or modify anything to the project, you can download the source code here. This source code and any information on this site is provided “as is.” The administration is not responsible for any direct or indirect damages arising from the use of this resource. Use of the information and tools provided is entirely at your own risk.
There are some functions of controlling externals PA:
- Band voltage for Xiegu XPA125B.
- Decimal (BCD) as Yaesu, Elecraft.
Basic specifications
- 4 Receivers 1 Transmitter
- Frequency range RX/TX 100 kHz – 61 MHz (MARS) without restrictions in hardware
- Integrated Step Attenuator 0-31 dB, BPF+LNA 6m, LNA, 7 LPF filters

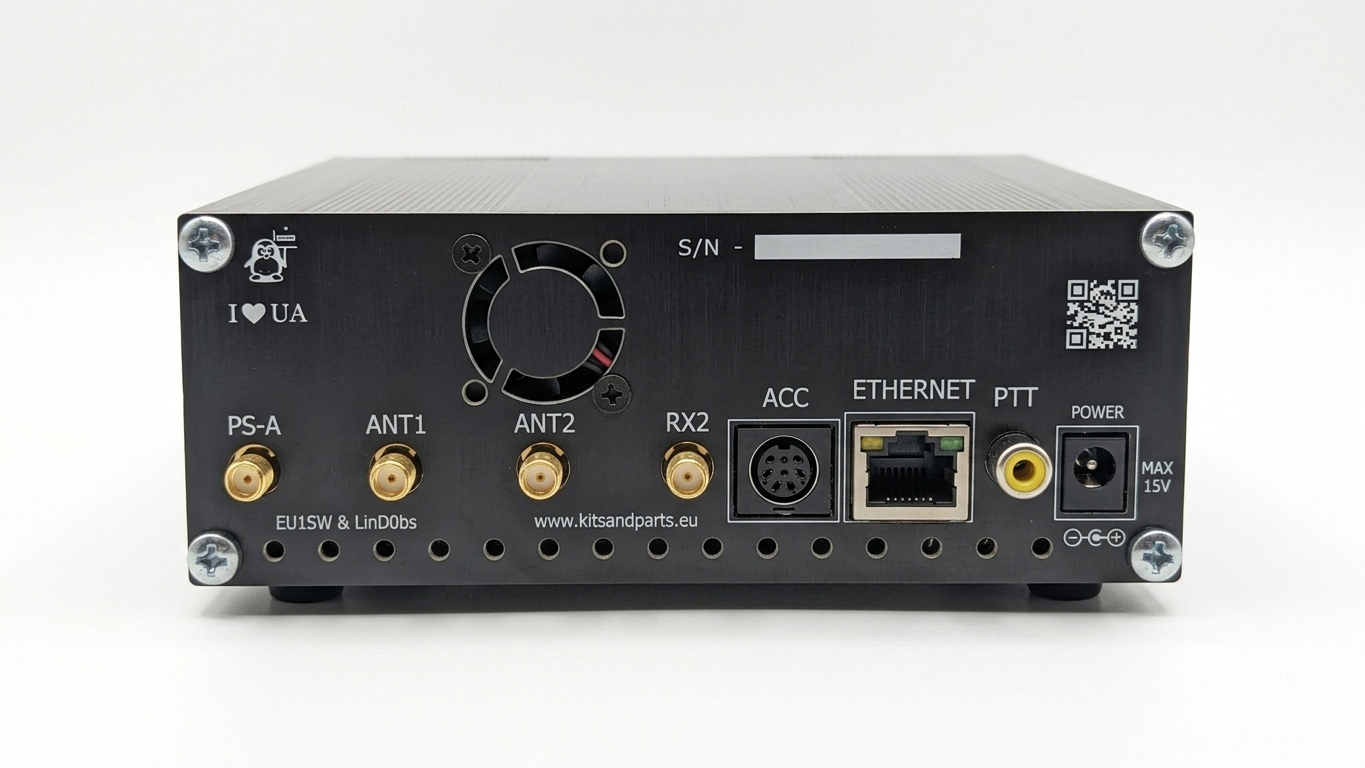

- Separate Input for Pure Signal
- Separate RX2 input
- Two antenna inputs
- Output RF power 15 W
- Power consumption when receiving approx. 500mA
- Power consumption during transmission approx. 4 A
- 2x 16-bit ADC and separate 14-bit DAC
- Gigabit Ethernet
- TCXO frequency stabilization
- LED indication
- SWR/PWR meter
- Integrated control interface for external PA BCD (Yaesu, Elecraft, etc.), Band Voltage for Xiegu
- Separate RCA PTT Out
- Integrated speaker (can be installed itself)

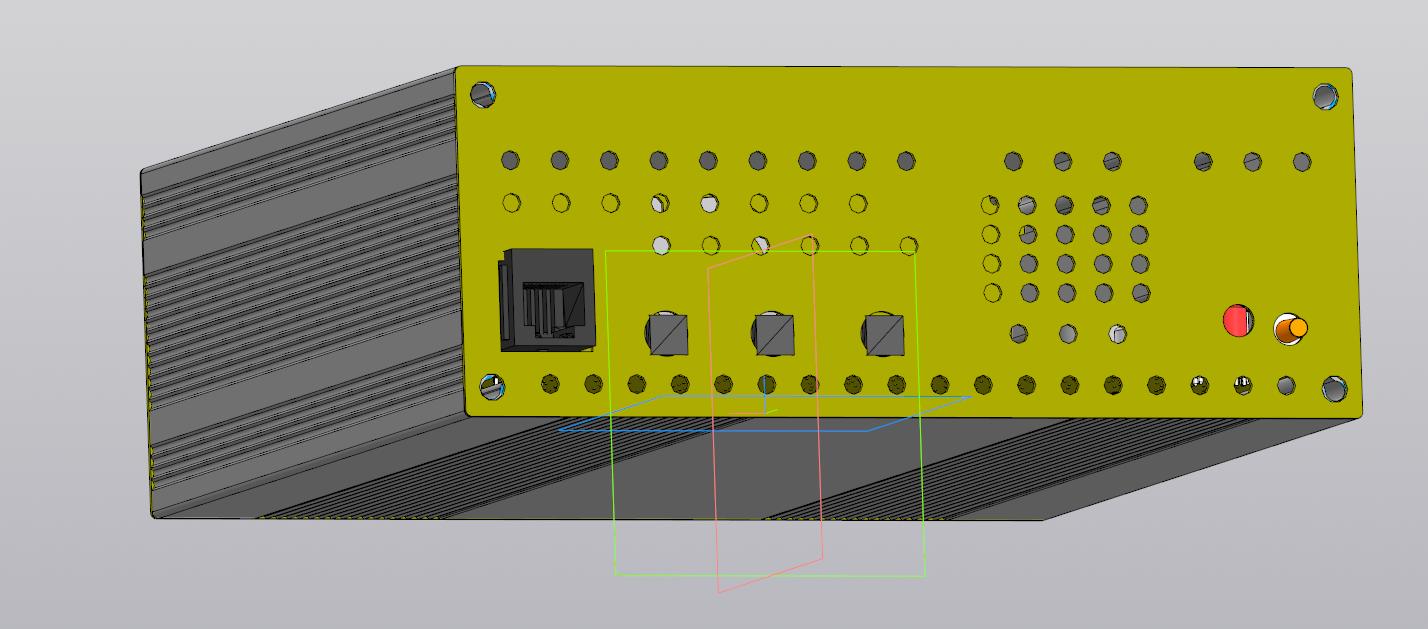

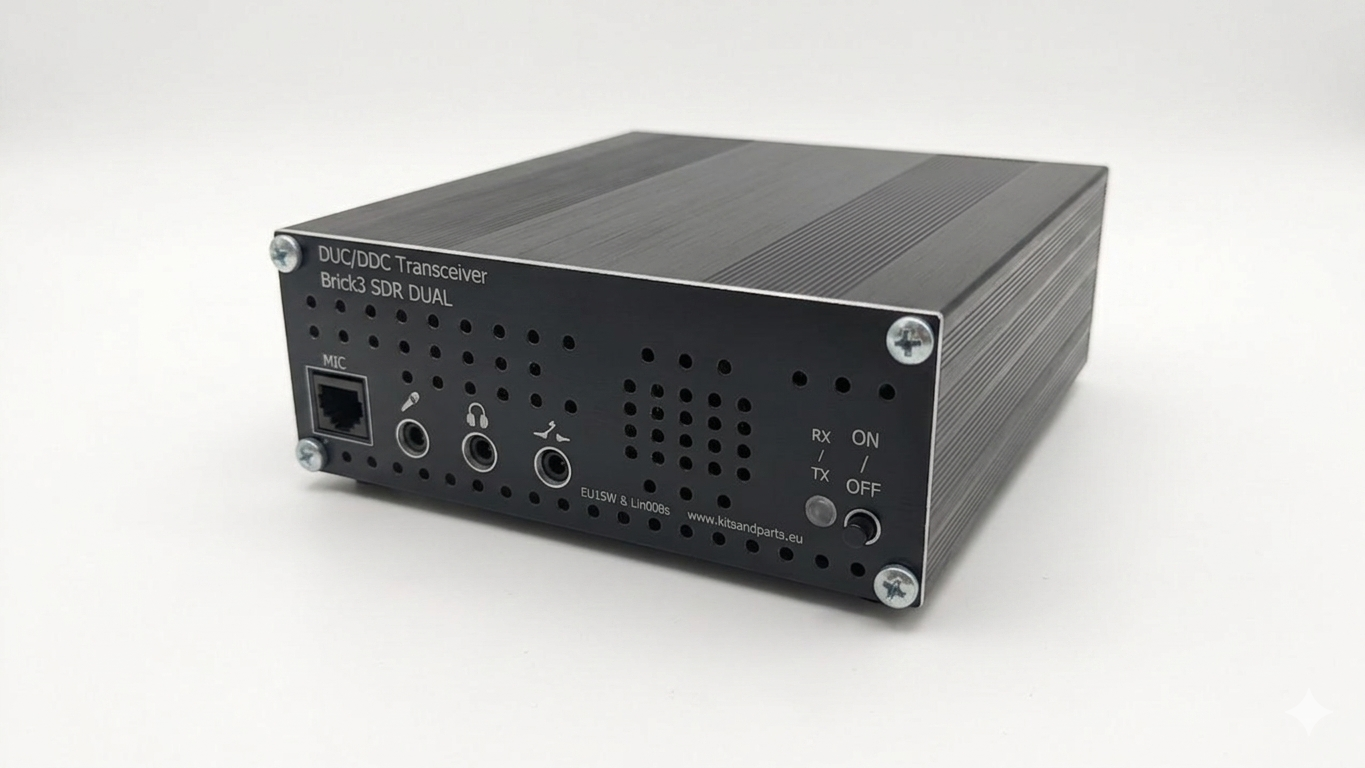

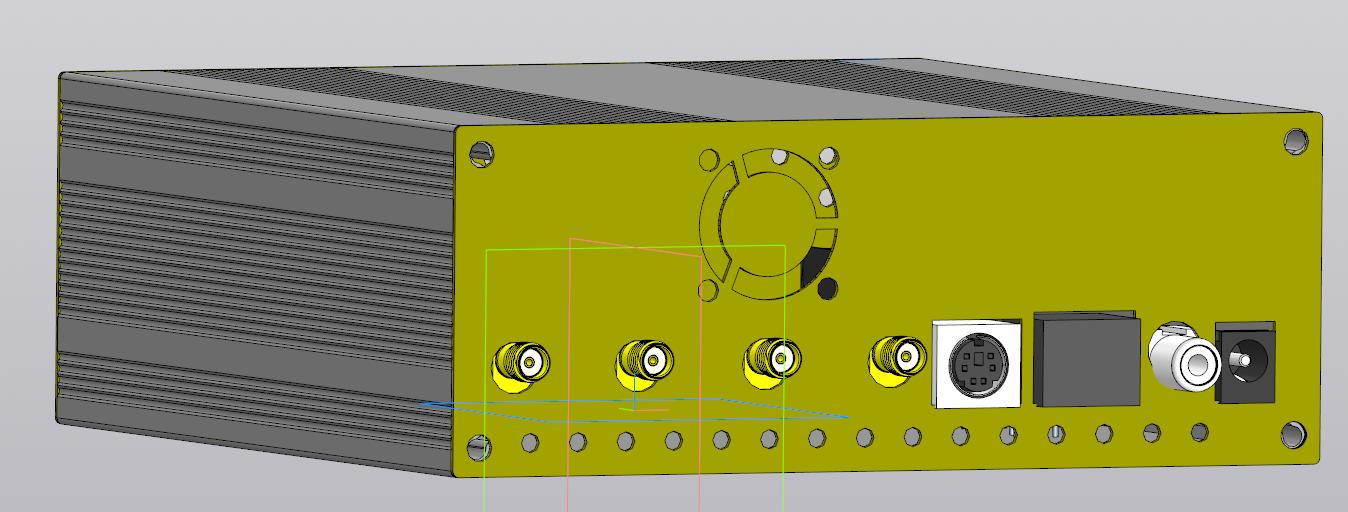

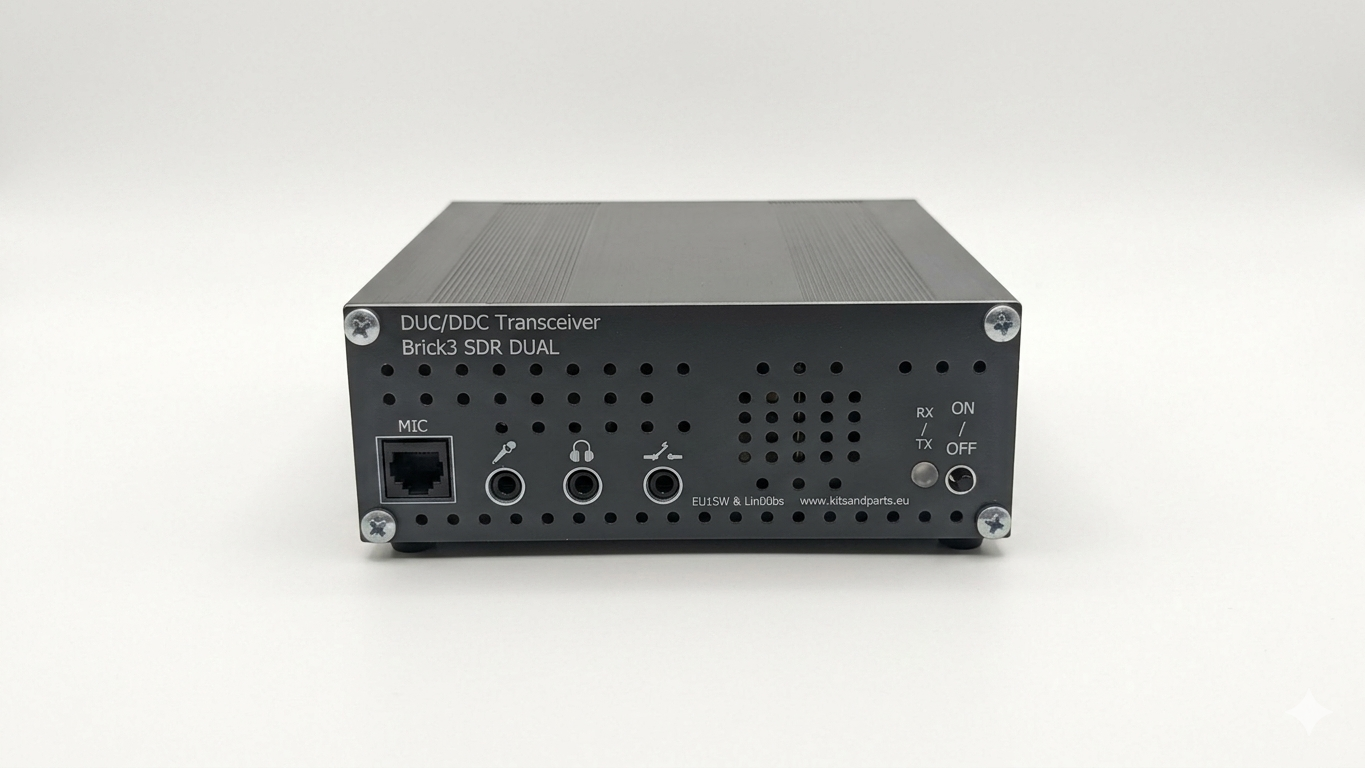

- Integrated phone, mic and Cw key jacks. Separate connector for Yaesu MH-48, 32 etc mic.
- Supply voltage 12 – 15 VDC
- SW, GW compatibility and functionality (protocol 2) as ANAN-100D with Thetis, ConsoleSDR, Kiss and other
- Total external dimensions in the box 145 (w) x 54 (h) x 200 (d) mm
- Weight approx. 900 g
If you want to order BRICK3 SDR DUAL 16-bit, use the following link…
