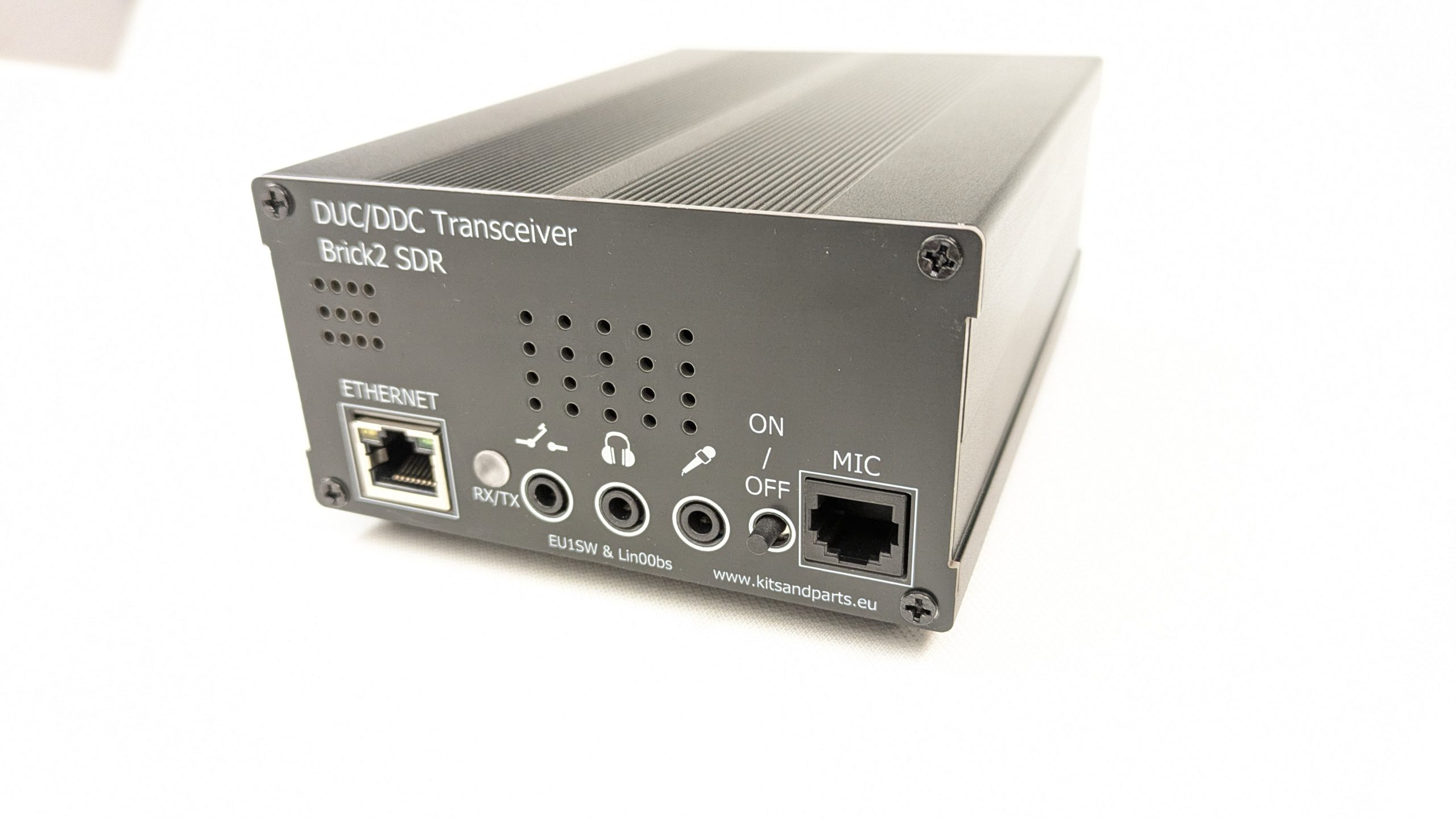

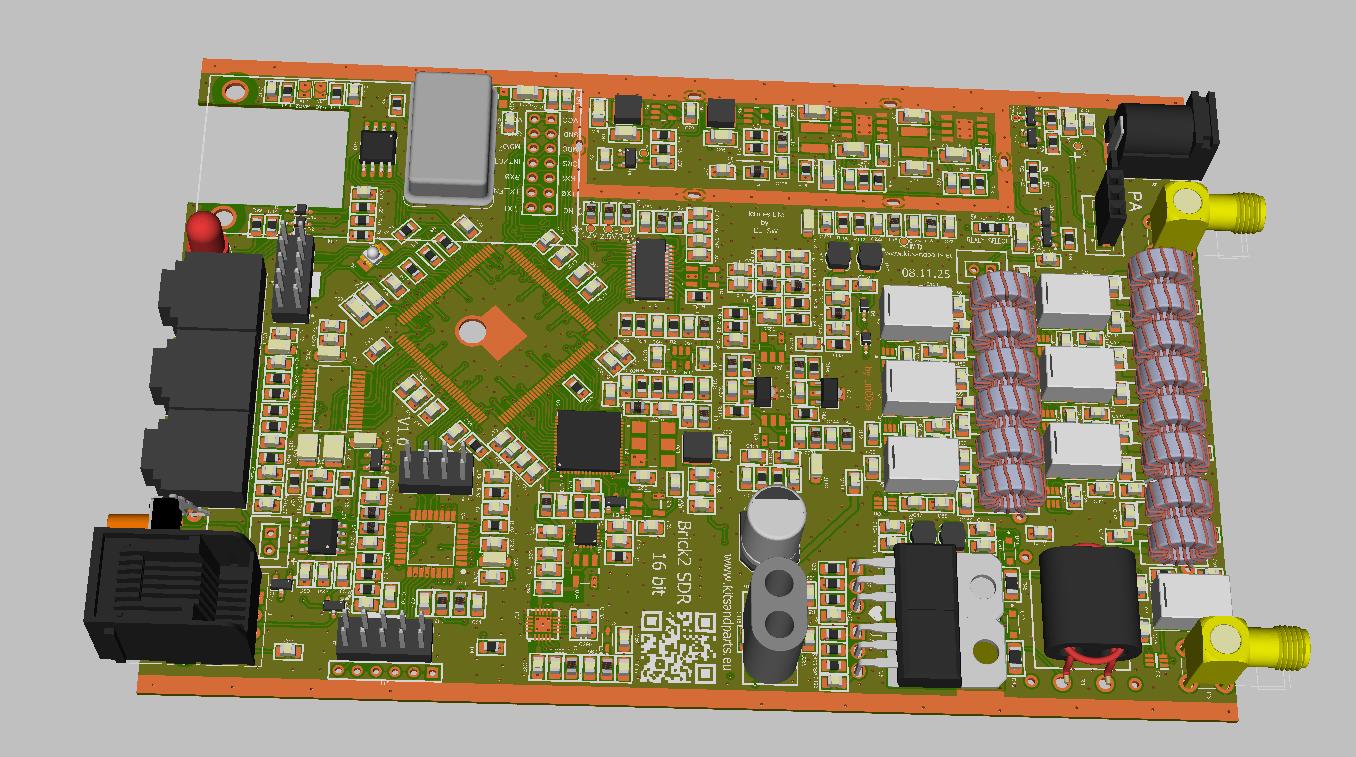

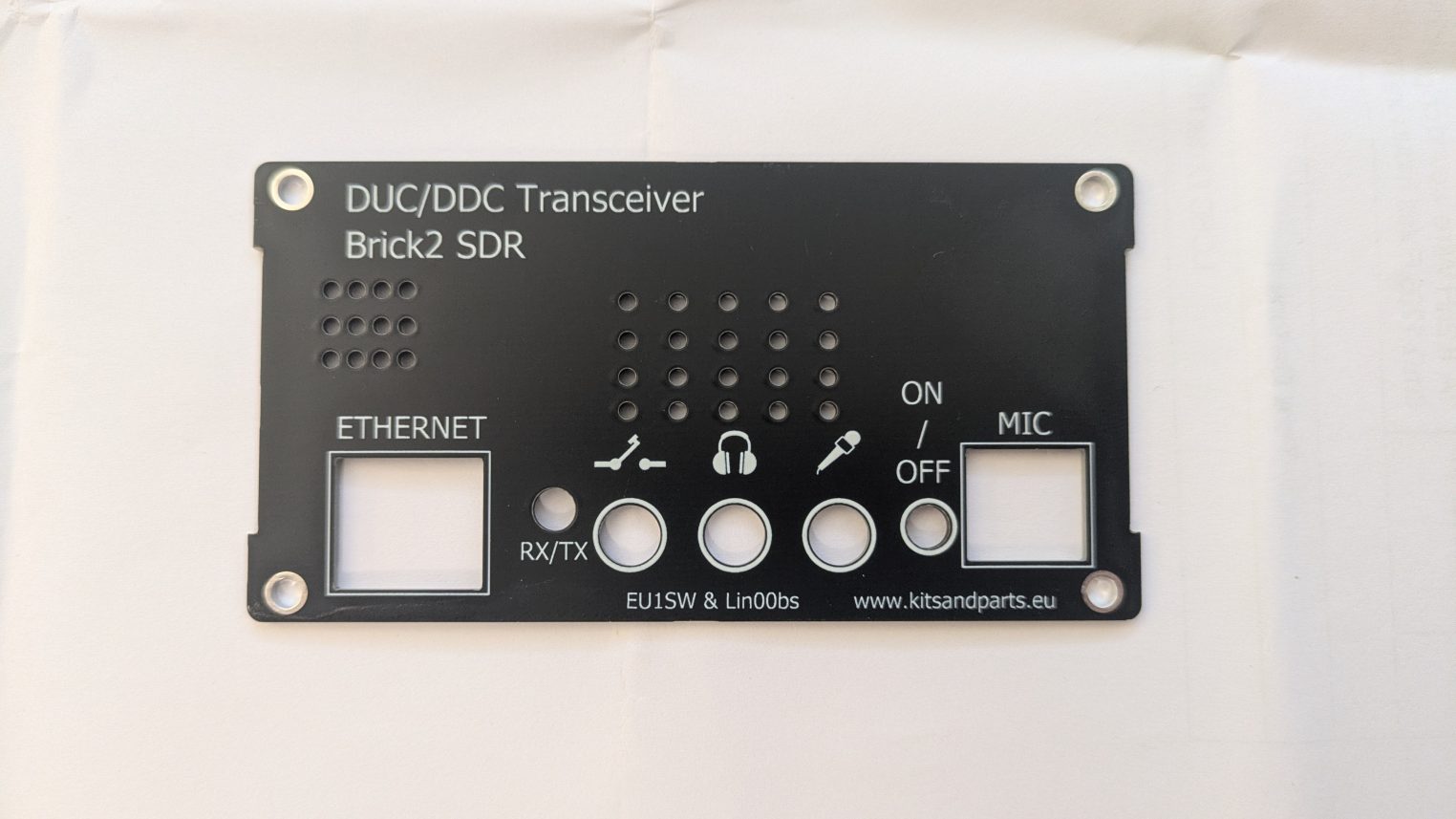

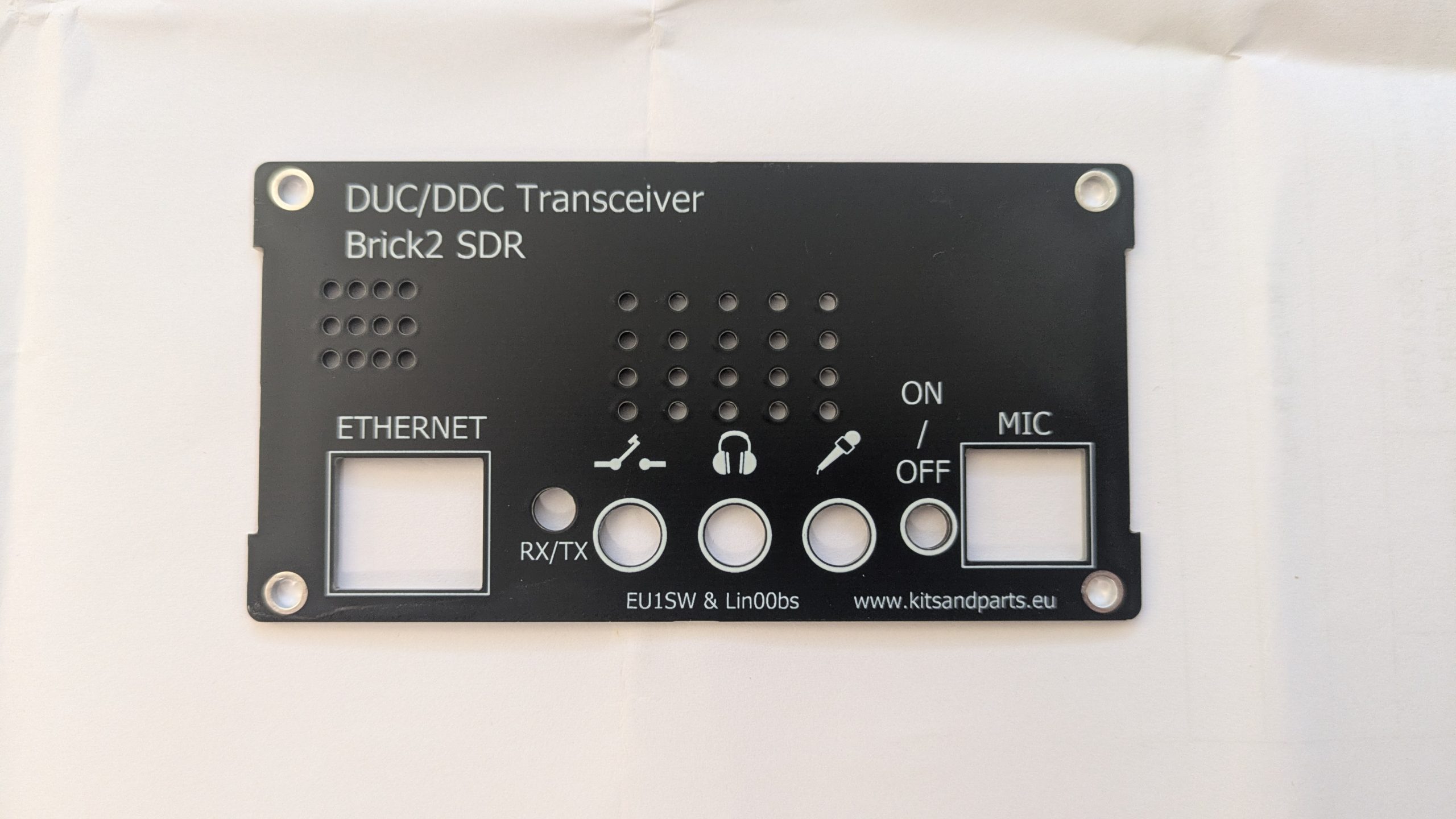

Brick2 SDR 16-bit is a continuation of the transceiver Brick2 SDR ie. Hermes-Lite EU1SW, but with another more powerful ADC with 16 bits. Has a main board, on which all elements are located, such as LNA, Step ATT 0-31 dB, including power amplifier and 7 LPF.
The power amplifier is made according to a push-pull scheme on a pair of RD16HHF. The output power on 160-10m 10-15 watts, 6m 8-10 watts.
Can be used up to 4 rigs in one network.
The SW is still under development. There are some functions of controlling externals PA:
- Serial interface for Hardrock-50 TTL 3.3V (need tested).
- Band voltage for Xiegu XPA125B.
- Decimal (BCD) as Yaesu, Elecraft.
Basic specifications
- 2 Receivers 1 Transmitter
- Frequency range RX/TX 100 kHz – 61 MHz (MARS) without restrictions in hardware
- Integrated Step Attenuator 0-31 dB, LNA, 7 LPF filters
- Separate Input for Pure Signal
- Output RF power 15 W
- Power consumption when receiving approx. 250mA
- Power consumption during transmission approx. 4 A
- 16-bit ADC and separate 14-bit DAC
- Fast Ethernet
- TCXO frequency stabilization
- LED indication
- SWR/PWR meter

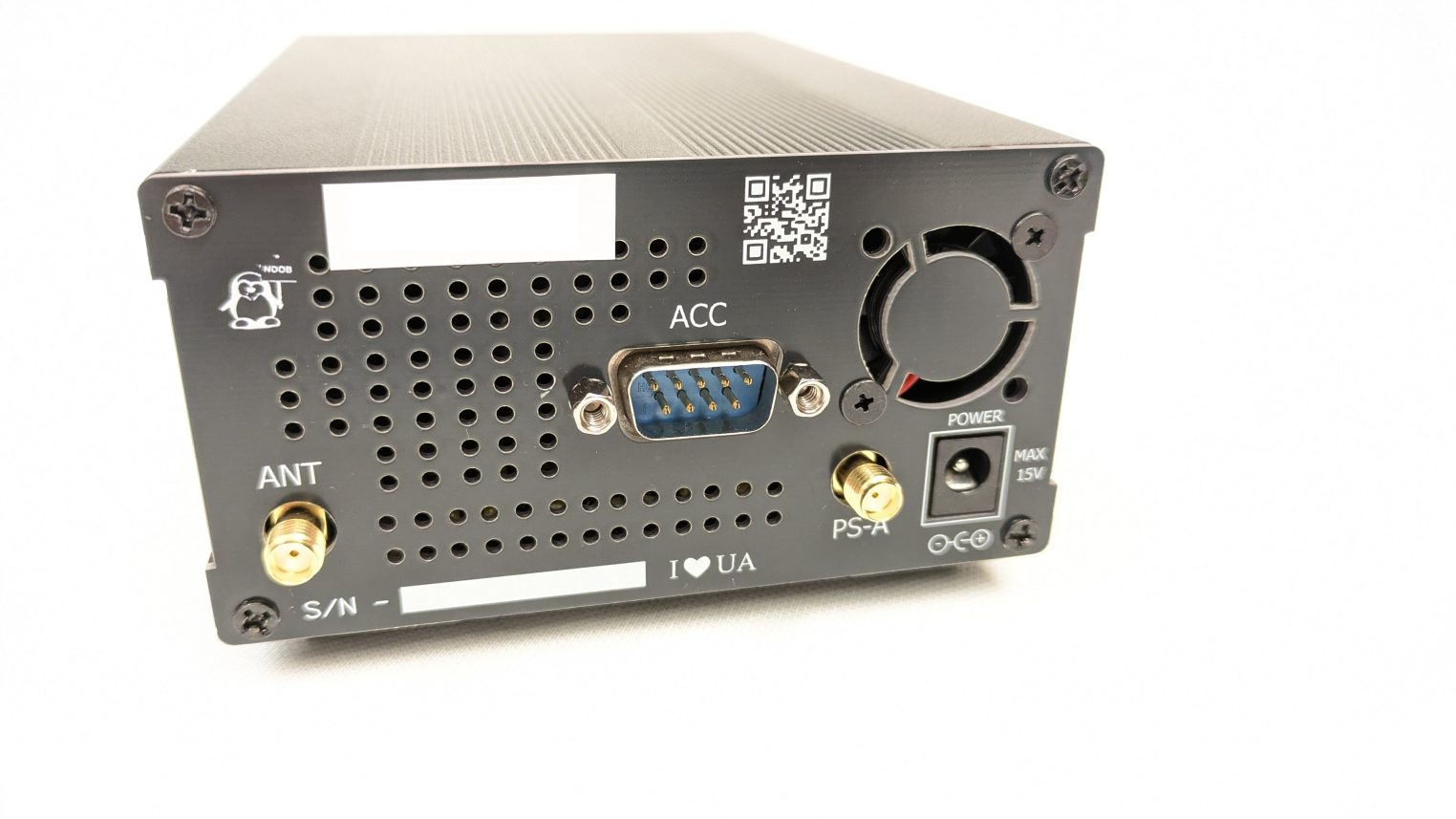

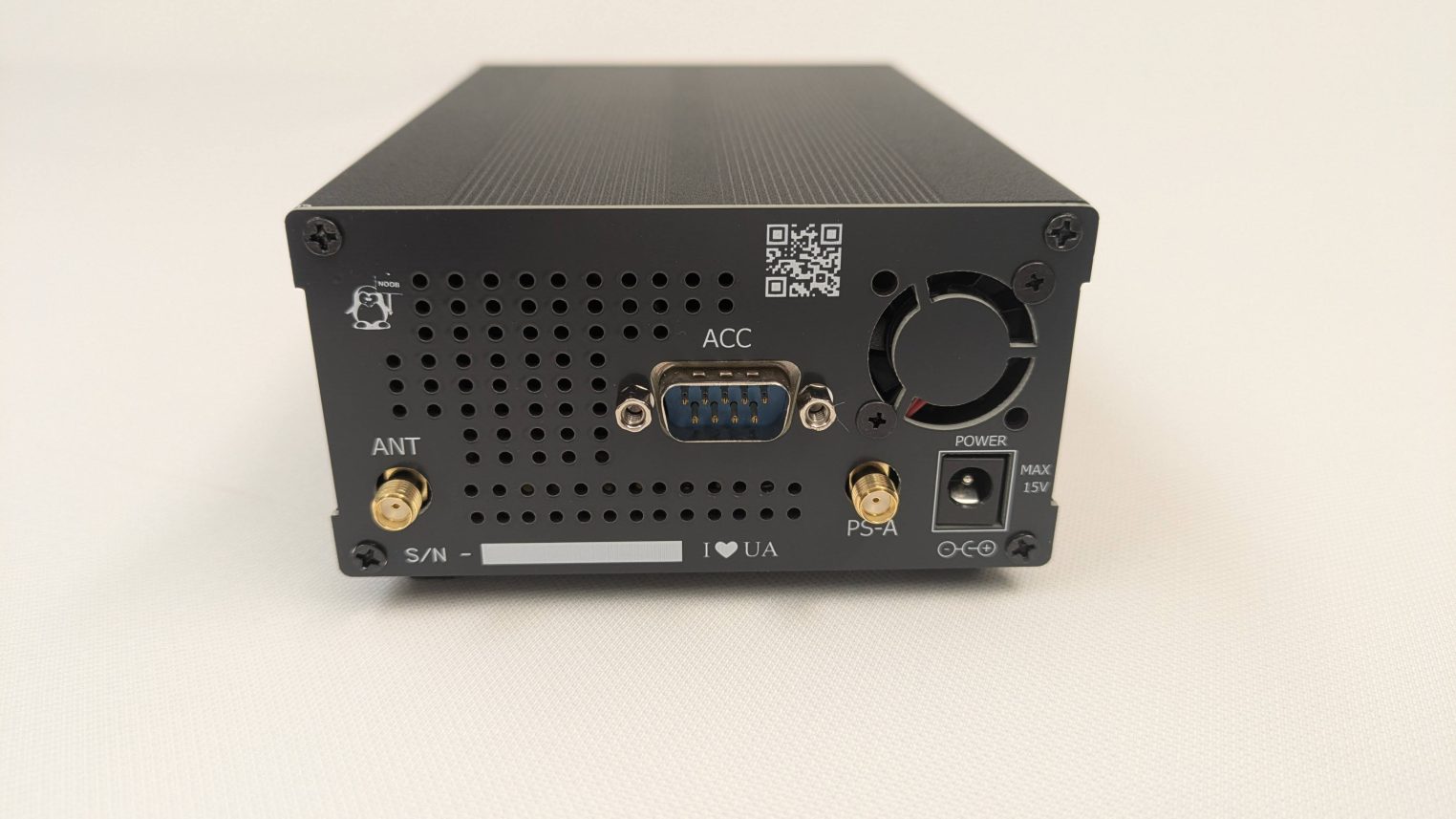

- Integrated control interface for external PA BCD (Yaesu, Elecraft, etc.), UART for Hardrock, Band Voltage for Xiegu, PTT Out
- Integrated speaker (can be installed itself)

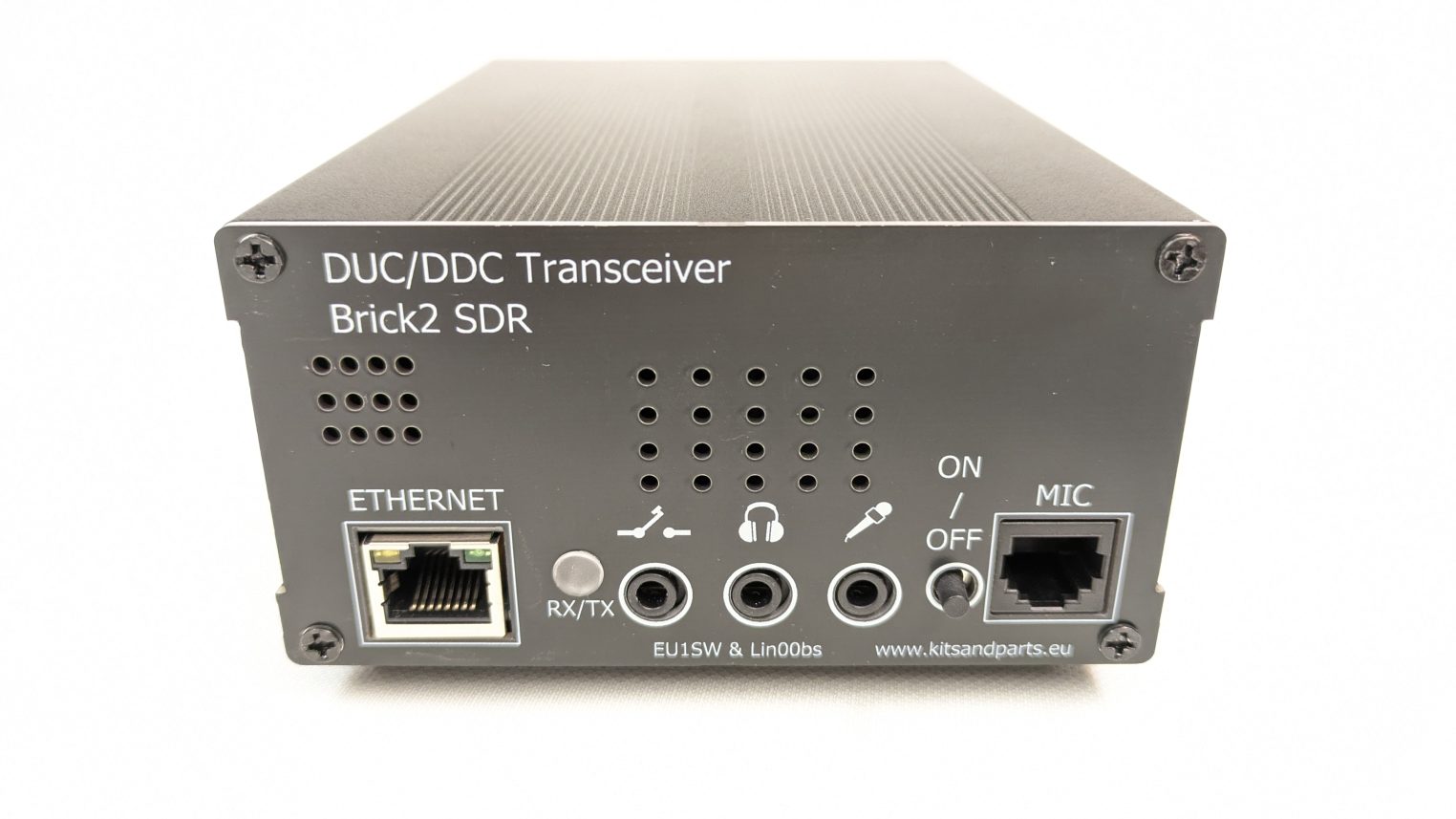

- Integrated phone, mic and Cw key jacks. Separate connector for Yaesu MH-48, 32 etc mic.
- Supply voltage 12 – 15 VDC
- SW, GW compatibility and functionality (protocol 2) with Thetis, ConsoleSDR, Kiss and other
- Total external dimensions in the box 150 (w) x 55 (h) x 100 (d) mm
- Weight approx. 750 g
If you want to order BRICK2 SDR 16-bit, use the following link…
